Block Diagram

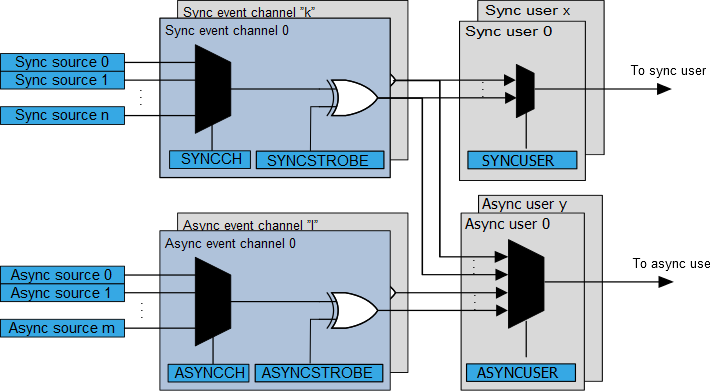

Figure 1. Block Diagram

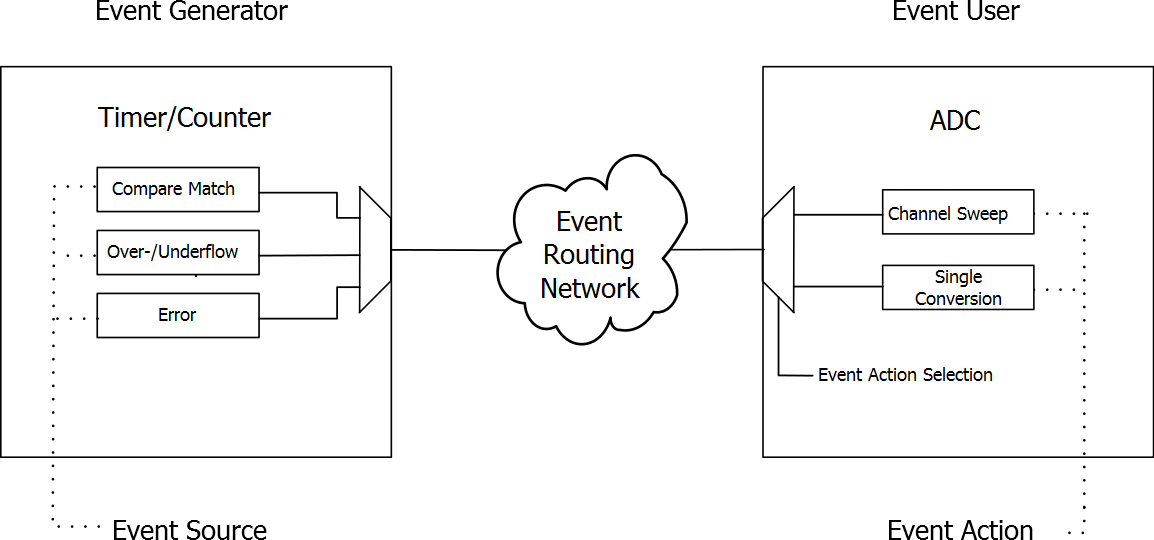

Figure 2. Example of Event Source, Generator, User, and Action

Note:

For an overview of peripherals supporting Events, refer the Block Diagram of the device.
For a list of Event Generators, refer to the Channel n Generator Selection registers (EVSYS.SYNCCH and EVSYS.ASYNCCH).
For a list of Event Users, refer to the User Channel n Input Selection registers (EVSYS.SYNCUSER and EVSYS.ASYNCUSER).
