The debugger system can be configured to use standard ICSP communication connection for both programming and debugging functions.
Make sure to align the Pin 1 on the debugger to Pin 1 on the target. The programming connector can be inserted into either:
- A matching connector at the target, where the target device is on the target board (Figure 1).
- A standard adapter/header board combo (available as a Processor Extension Pak), which is then plugged into the target board (Figure 2).
For more on standard communication, see Standard Communication.

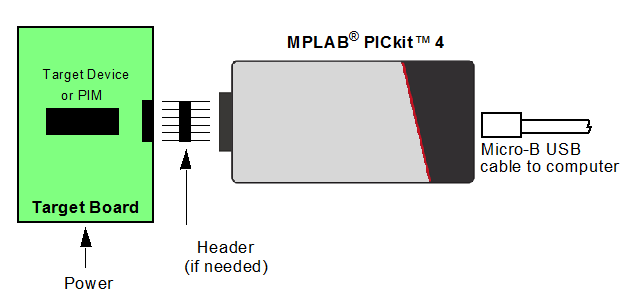

Figure 1. Standard Debugger System – Device
With On-board ICE Circuitry

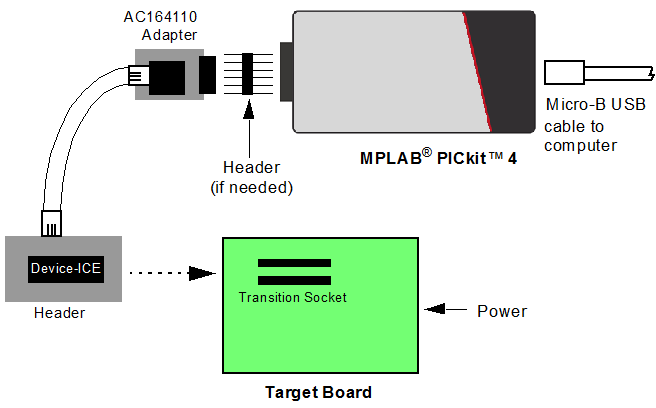

Figure 2. Standard Debugger System – ICE
Device
