Add a New Configuration

To add a new configuration to your project:

  1. 1.Click Manage Configurations in the Project Properties window.
  2. 2.In the Configurations dialog, select a project configuration and click New.
  3. 3.Enter a name in the New Configuration Name dialog, such as “My Test” (see figure below). Click OK to close the dialog. Under “Configurations,” the name will be changed to “My_Test” since spaces are not allowed.
  4. 4.Click OK to return to the Project Properties window. The debug configuration (Conf: My_Test) should now be visible.
Figure 1. Create New Configuration

Once a new configuration is added, some items must be assigned in the Project Properties window (see figure below).

  1. 1.Device – You must select this first to see the hardware tool and compiler support.
  2. 2.Hardware Tool
  3. 3.Compiler Toolchain

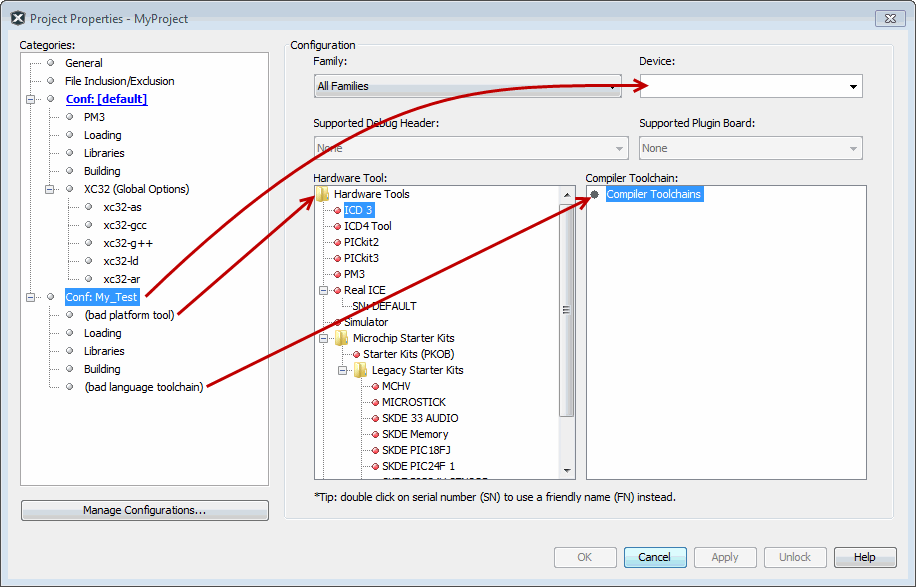

Figure 2. New Configuration
Parent topic: Work with Multiple Configurations
