The algorithm for reading the Fuse and Lock
         bits is as follows (Please refer to Programming the Flash for details on Command loading):
- Step A: Load Command “0000 0100”.
- Set OE to “0”,
            BS2 to “0” and BS1 to “0”. The status of the Fuse Low bits can now be read at DATA (“0”
            means programmed).
- Set OE to “0”,
            BS2 to “1” and BS1 to “1”. The status of the Fuse High bits can now be read at DATA (“0”
            means programmed).
- Set OE to “0”,
            BS2 to “1”, and BS1 to “0”. The status of the Extended Fuse bits can now be read at DATA
            (“0” means programmed).
- Set OE to “0”,
            BS2 to “0” and BS1 to “1”. The status of the Lock bits can now be read at DATA (“0”
            means programmed).
- Set OE to
            “1”.

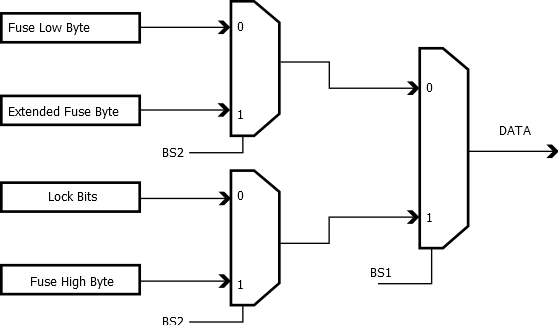

Figure 1. Mapping Between BS1, BS2 and the
            Fuse and Lock Bits During Read
