This document targets the Atmel XMEGA-A1 Xplained kit, revision 9. The schematic, layout, and bill of materials can be found online in the zip files.
The XMEGA-A1 Xplained kit is intended to demonstrate the Atmel ATxmega128A1 microcontroller, and the hardware that relates to the Atmel AT32UC3B1256 is, therefore, not covered in this document.

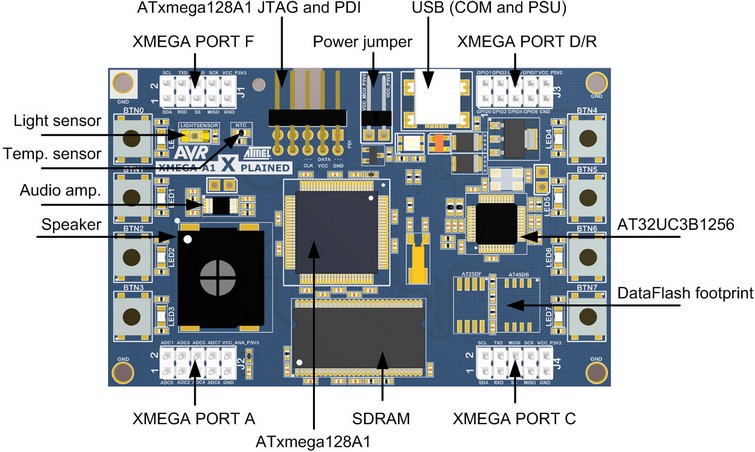

Figure 1. XMEGA-A1 Xplained kit
