The Program Trace can be started by clicking the play button in the Trace View Window. The start button is enabled during debug. Trace can be started and stopped any number of times in a debug session. Starting a new trace session clears all trace information of the previous trace session.
Note: A region of SRAM has to be allocated
to let the device record the trace. Refer to Trace View Settings for more information.

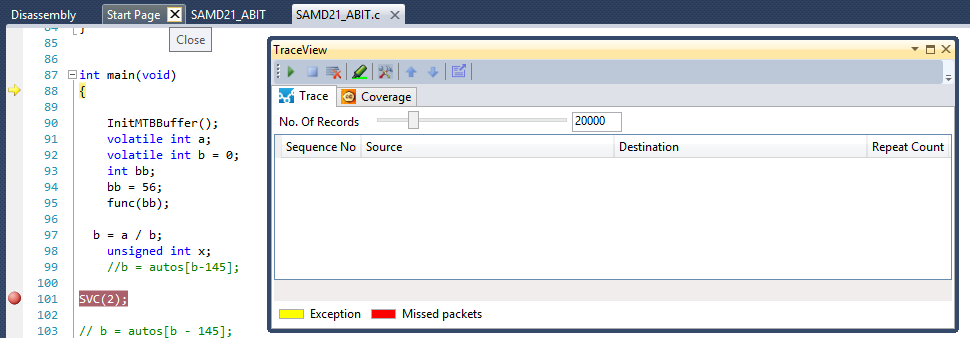

Figure 1. Trace View Window
