ELEMENT_TYPE_SURFACE

The tables below describe the ELEMENT_TYPE_SURFACE specific parameters and additional fields for the MSG_CONF_DASHBOARD_ELEMENT message. This element generates a 3D surface plot that visualizes the grid of data points from the target. There is one input stream that accepts grid type data.

Table 1. ELEMENT_TYPE_SURFACE Specific Parameters
Parameter Value
ELEMENT_TYPE 0x0D
Total data length of MSG_CONF_DASHBOARD_ELEMENT when using ELEMENT_TYPE_SURFACE 47
Table 2. Additional Data Fields to MSG_CONF_DASHBOARD_ELEMENT for ELEMENT_TYPE_SURFACE
Field Size Values Description
Fill color 3 bytes 0xRRGGBB RGB color of surface fill
Mesh color 3 bytes 0xRRGGBB RGB color of surface mesh
Background color 4 bytes 0xAARRGGBB RGB color of background
Background gradient color 4 bytes 0xAARRGGBB RGB color of background gradient
Axis color 3 bytes 0xRRGGBB RGB color of axes
Tick color 3 bytes 0xRRGGBB RGB color of ticks
X Rotation 1 byte -90-90 Rotation of view around X axis in degrees
Y Rotation 1 byte -90-90 Rotation of view around Y axis in degrees
Z Rotation 1 byte -90-90 Rotation of view around Z axis in degrees
Attributes 1 byte
  • Bit 0: Show X axis
  • Bit 1: Show Y axis
  • Bit 2: Show Z axis
  • Bit 3: Show fill
  • Bit 4: Show mesh
  • Bit 5: Use palette coloring

Scaling mode 1 byte
  • 0 = Static
  • 1 = Scale roof and floor
  • 2 = Scale roof
  • 3 = Scale floor
  • 4 = Sticky scale roof and floor
  • 5 = Sticky scale roof
  • 6 = Sticky scale floor

Axis minimum 4 bytes Floating point Minimum value (floor) of Y axis
Axis maximum 4 bytes Floating point Maximum value (roof) of Y axis

Example

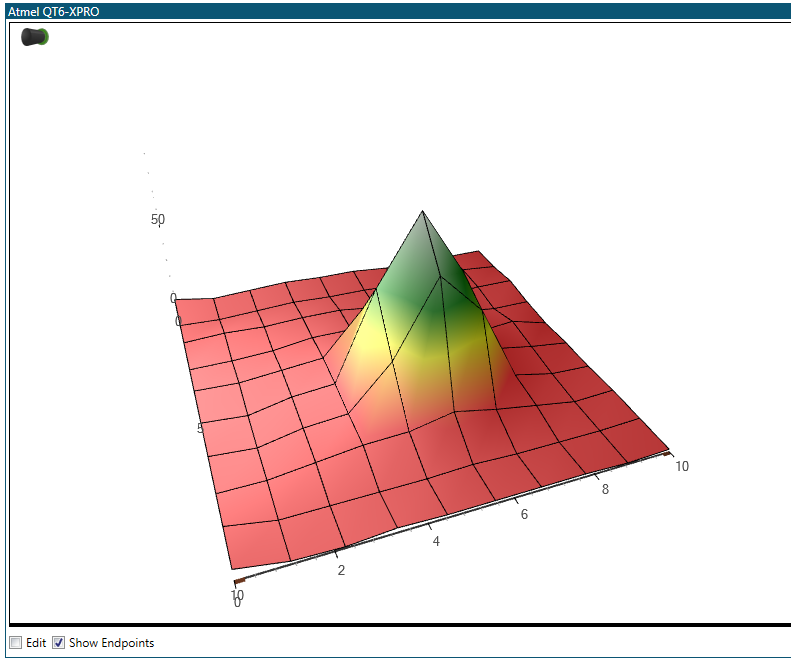

The picture below shows an example of a surface element. The element data fields for the example are shown in the table below the picture.

Note: The appearance of elements will vary with operating system version and configuration.
Table 3. Surface
Field Value
Z-index 0
X-coordinate 5
Y-coordinate 5
Width 750
Height 590
Element type 0x0D
Fill color 0x2F4F4F
Mesh color 0x000000
Background color 0x00000000
Axis color 0x505050
Tick color 0x505050
X Rotation 35
Y Rotation -70
Z Rotation 0
Attributes 0b00111111
Scaling mode 5
Axis minimum 0
Axis maximum 10
