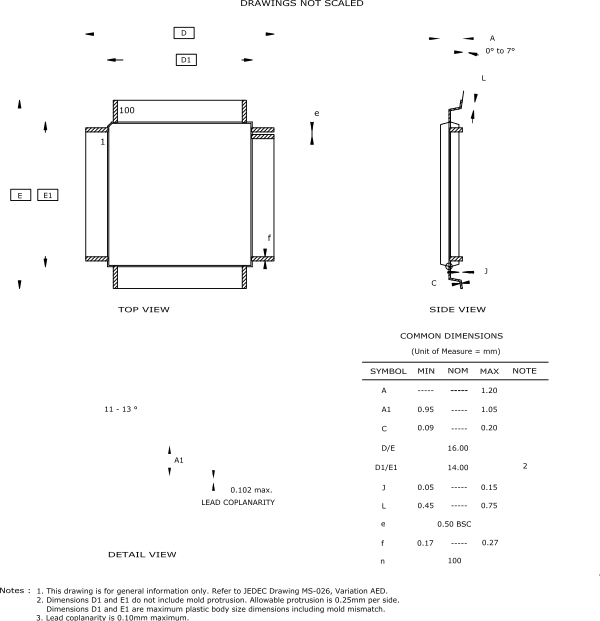

100 pin TQFP
Table 1.
Device and Package Maximum Weight
520
mg
Table 2.
Package Characteristics
Moisture Sensitivity Level
MSL3
Table 3.
Package Reference
JEDEC Drawing Reference
MS-026, variant AED
JESD97 Classification
e3
