The SAM L22 uses a single supply from 1.62V to 3.63V.
The following figure shows the recommended power supply connection.

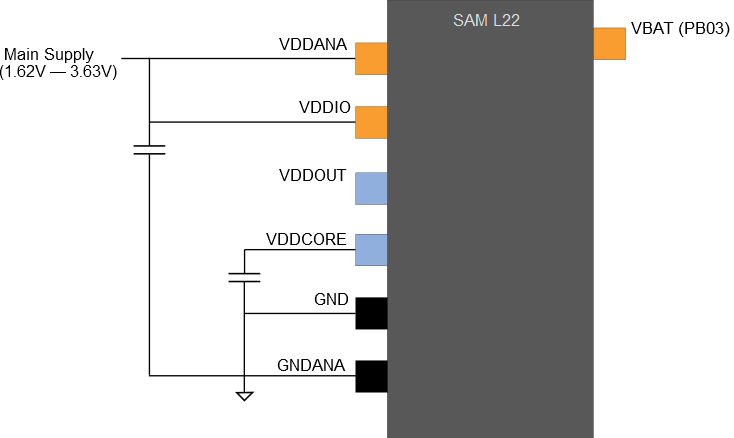

Figure 1. Power
Supply Connection for Linear Mode Only
Figure 2. Power
Supply Connection for Switching/Linear Mode

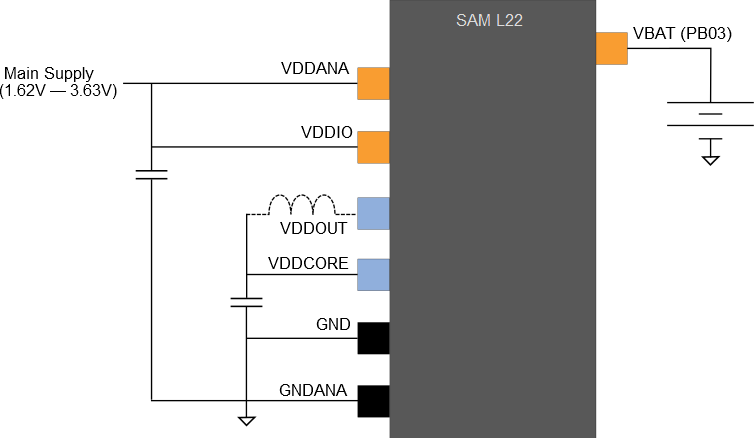

Figure 3. Power
Supply Connection for Battery Backup
