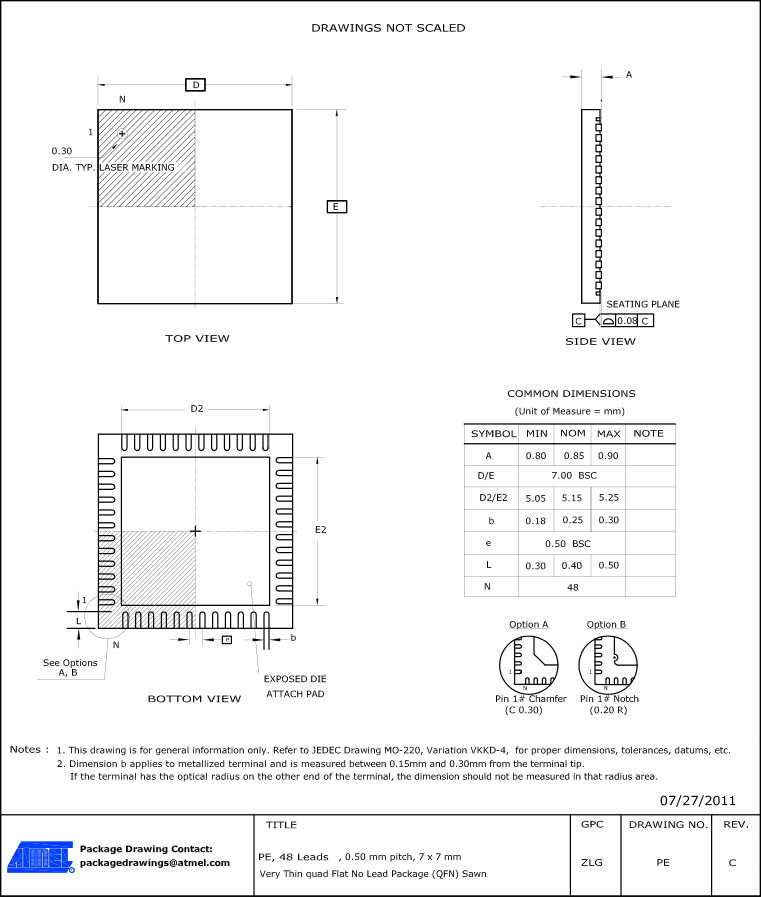

48 pin QFN

Note: The exposed die attach pad is not connected electrically inside the device.
Table 1. Device and Package Maximum Weight
140 mg
Table 2. Package Characteristics
Moisture Sensitivity Level MSL3
Table 3. Package Reference
JEDEC Drawing Reference MO-220
JESD97 Classification E3
Parent topic: Package Drawings
