100-Pin UFBGA

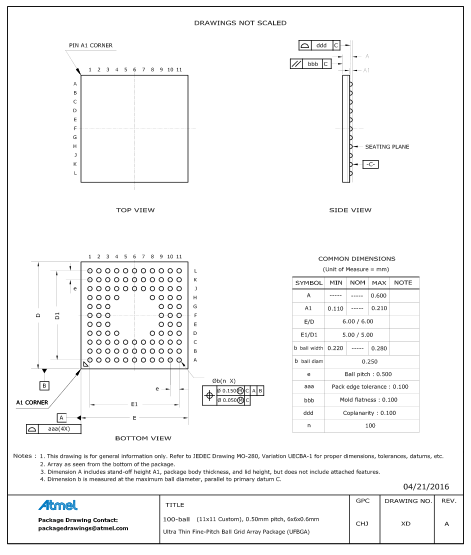

Figure 1. 100-Pin UFBGA Outline Drawing
Table 1. Device and Package Maximum Weight
42 mg
Table 2. Package Characteristics
Moisture Sensitivity Level MSL3
Table 3. Package Reference
JEDEC Drawing Reference N/A (custom)
JESD97 Classification e8
