The sequence of events for programming a page of internal program memory are as follows:
- 1.Set the NVMADR registers with the target page address.
- 2.Read the PFM page into RAM with the Page Read operation. (This is required only for read-modify-write operations)
- 3.Execute the Page Erase operation (see PFM Erase Sequence). The GO bit is set as the last step in the erase sequence.
- 4.The CPU will stall for the duration of the erase (about 10 ms using the internal timer).
- 5.Load the TBLPTR registers with address of first byte being updated.
- 6.Write the n-byte modification into the buffer registers.
- 7.Disable interrupts.
- 8.Execute the Unlock sequence (see Unlock Sequence). The GO bit is set as last step in the unlock sequence.
- 9.The CPU will stall for the duration of the write (about 10 ms using internal timer).
- 10.Re-enable interrupts.
- 11.Verify the memory.
This procedure will require about 20 ms to update each page of memory. See the “Memory Programming Specifications” for more detail. An example of the required code is given below.
Important: Before
executing the Page Write operation, the NVMADR value needs to be within the
intended address range of the target PFM page.

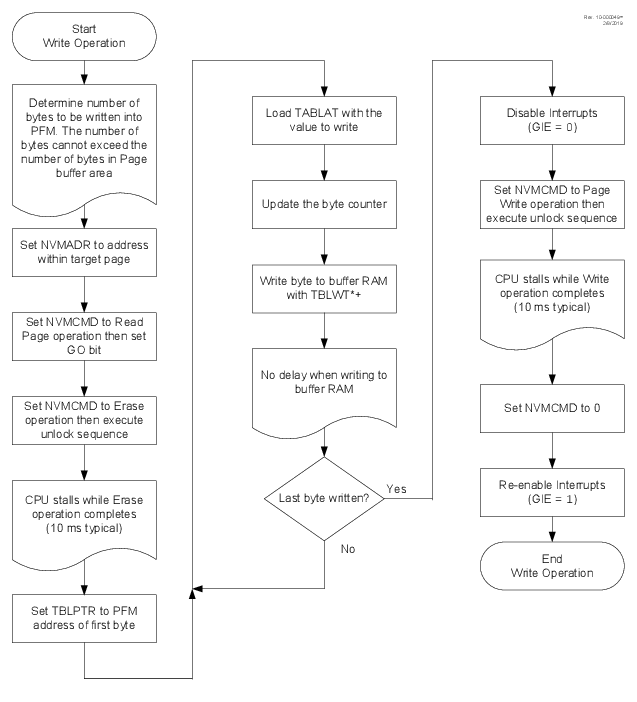

Figure 1. Program Flash Memory
(PFM) Write Flowchart
Writing a Page of Program Flash Memory
; Code sequence to modify one word in a programmed page of PFM
; Calling routine should check WREG for the following errors:
;
; 00h = Successful modification
; 01h = Read error
; 02h = Erase error
; 03h = Write error
;
READ_PAGE:
; load NVMADR with the base address of the memory sector
MOVLW CODE_ADDR_HIGH
MOVWF NVMADRH
MOVLW CODE_ADDR_LOW
MOVWF NVMADRL
BCF INTCON0, GIE ; disable interrupts
MOVLW 0x02 ; page read command
MOVWF NVMCON1 ; set command
BSF NVMCON0, GO ; start page read
BTFSC NVMCON1, WRERR ; Verify no error occurred during read
BRA NVM_RDERR ; return read error code
ERASE_PAGE: ; NVMADR is already pointing to target page
MOVLW 0x06 ; Page Erase command
MOVWF NVMCON1 ; set command
; ----- Required Sequence -----
MOVLW 0x55
MOVWF NVMLOCK ; first unlock byte = 0x55
MOVLW 0xAA
MOVWF NVMLOCK ; second unlock byte = 0xAA
BSF NVMCON0, GO ; start page erase (CPU stall)
; ------------------------------
BTFSC NVMCON1, WRERR ; Verify no error occurred during erase
BRA NVM_ERERR ; return erase error code
MODIFY_WORD:
MOVLW TARGET_ADDR_UPPER ; load TBLPTR with the target address
MOVWF TBLPTRU ; of the LSByte
MOVLW TARGET_ADDR_HIGH
MOVWF TBLPTRH
MOVLW TARGET_ADDR_LOW
MOVWF TBLPTRL
MOVLW NEW_DATA_LOW ; update buffer register
MOVWF TABLAT
TBLWT*+
MOVLW NEW_DATA_HIGH
MOVWF TABLAT
TBLWT*+
PROGRAM_MEMORY: ; NVMADR is already pointing to target page
MOVLW 0x05 ; page write command
MOVWF NVMCON1 ; set command
; ----- Required Sequence -----
MOVLW 0x55
MOVWF NVMLOCK ; first unlock byte = 0x55
MOVLW 0xAA
MOVWF NVMLOCK ; second unlock byte = 0xAA
BSF NVMCON0, GO ; start page write (CPU stall)
; ------------------------------
BTFSC NVMCON1, WRERR ; Verify no error occurred during write
BRA NVM_WRERR ; return sector write error code
CLRF WREG,F ; return with no error
BRA NVM_EXIT
NVM_RDERR:
MOVLW 0x01
BRA NVM_EXIT
NVM_ERERR:
MOVLW 0x02
BRA NVM_EXIT
NVM_WRERR:
MOVLW 0x03
NVM_EXIT:
CLRF NVMCON1 ; disable NVM writes
BSF INTCON0, GIE ; re-enable interrupts
RETURN
