Run

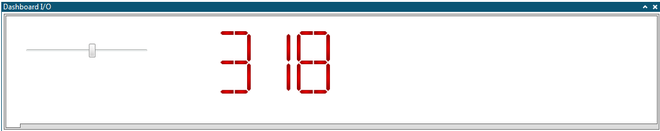

Now that the connections have been made in Data Visualizer, we can put the system into a running state and interact with the variable through the GUI. The slider is now in control of the frame_comparator variable in the application code. Drag the slider, and notice that the LED blink frequency changes. Any change in the slider position will be sent to the target device through the debug interface, and a new value stored to the variable. At the same time the value is also read back from the target, and displayed on the segment display.
