Clock Switch and Sleep

If the NOSC/NDIV bits are written with new values and the device is put to Sleep before the clock switch completes, the switch will not take place and the device will enter Sleep mode.

When the device wakes up from Sleep and CSWHOLD is clear (CSWHOLD = 0), the clock switch will complete and the device will wake with the new clock active, setting CSWIF.

When the device wakes from Sleep and CSWHOLD is set (CSWHOLD = 1), the device will wake up with the old clock active, and the new clock source will be requested again.

If Doze mode is in effect, the clock switch occurs on the next clock cycle regardless of whether or not the CPU is active during that clock cycle.

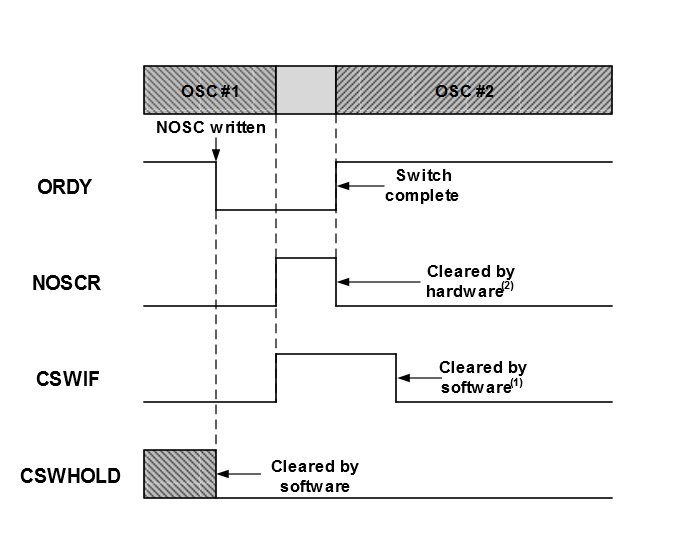

Figure 1. Clock Switch (CSWHOLD = 0)

Note:

1.CSWIF is asserted coincident with NOSCR; interrupt is serviced at OSC#2 speed.
2.The assertion of NOSCR may not be seen by the user as it is only set for the duration of the switch.

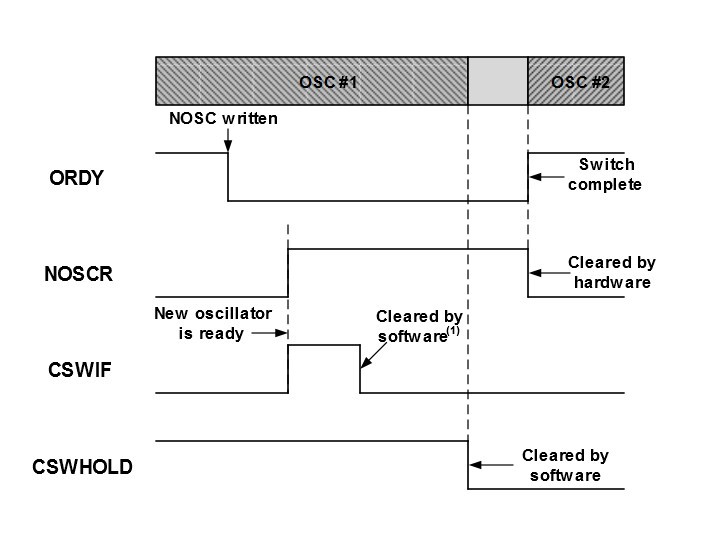

Figure 2. Clock Switch (CSWHOLD = 1)

Note:

1.CSWIF may be cleared before or after clearing CSWHOLD.

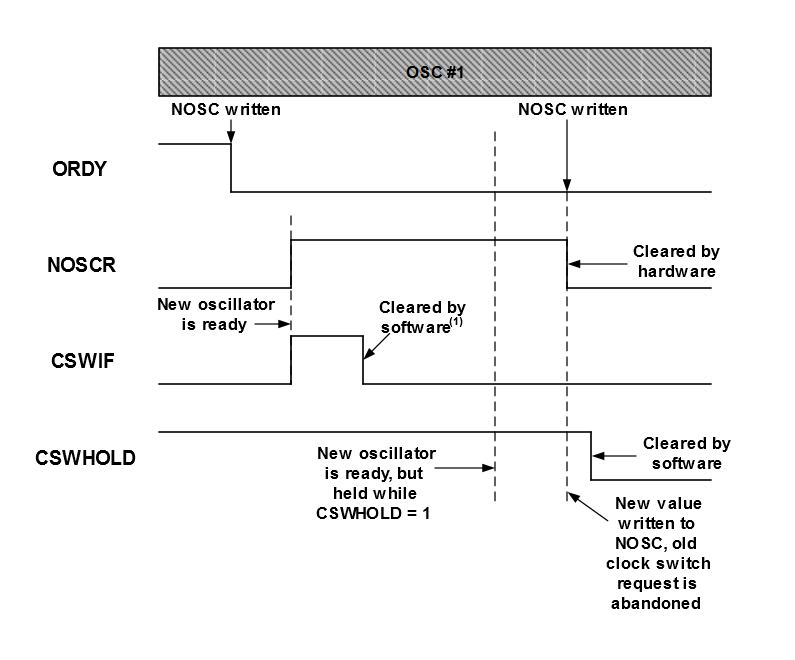

Figure 3. Clock Switch Abandoned

Note:

1.CSWIF may be cleared before or after rewriting NOSC; CSWIF is not automatically cleared.
